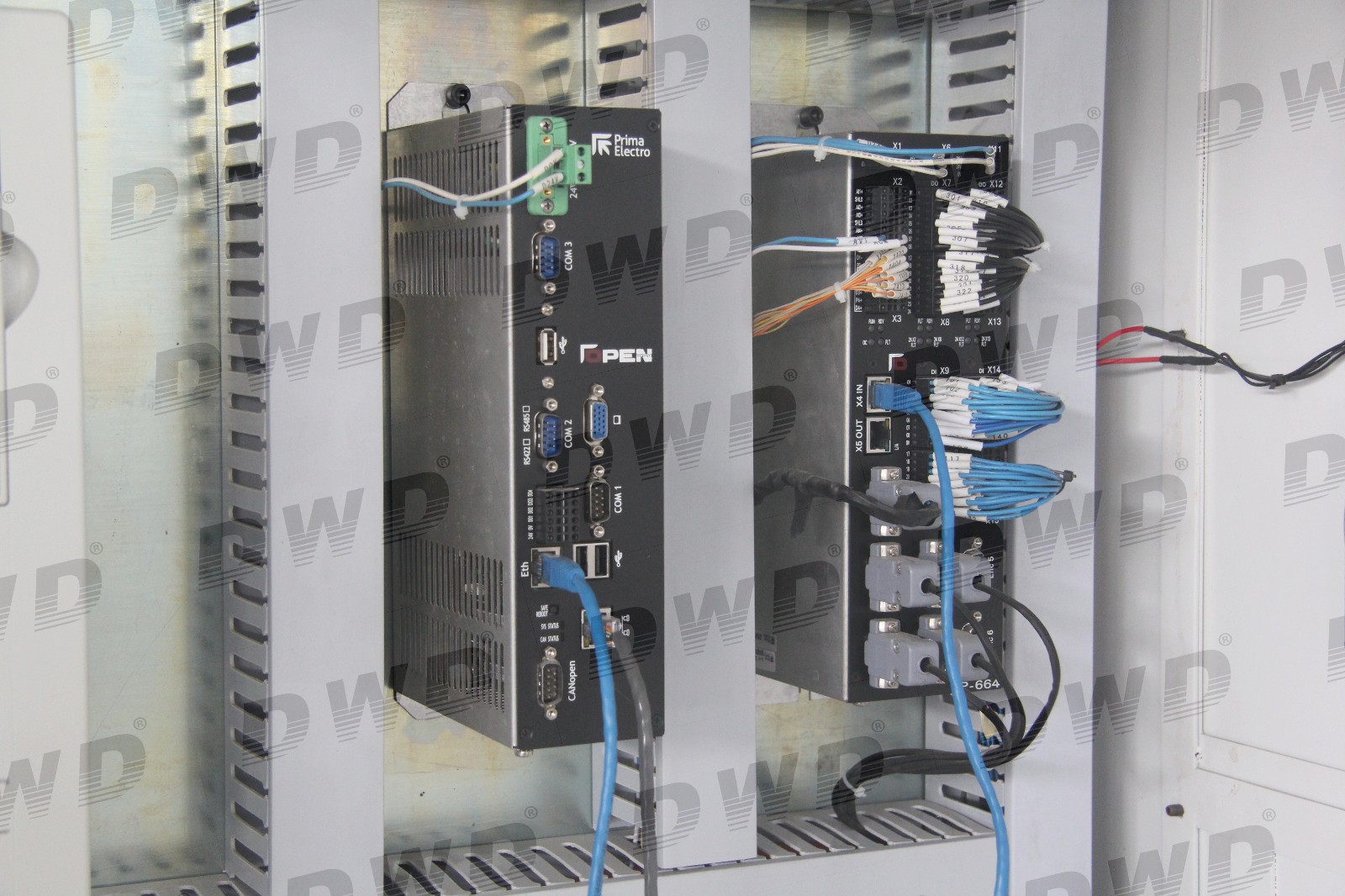

l Italy Osai controller
l 12 HP HSD high frequency automatic tool change spindle
l Maintenance free brushless AC servo motors and drivers
l Japan shimpo reducer coupled directly to servo motors
l Pneumatic material alignment stops
l 4-zone double-layer nesting vacuum table
l Hand-held pulse generator with rotary hand wheel controls the axis selected
| Working size | 1220*2440*250mm |
| Table size | 1220*2440mm |
| Traveling size | 1320*2540*250mm |
| Spindle power | Italy HSD 9.0 kw |
| Spindle speed | 0-24000mm/min |
| Driving system | Yaskawa servo |
| Reducer | Japan shimpo reducer |

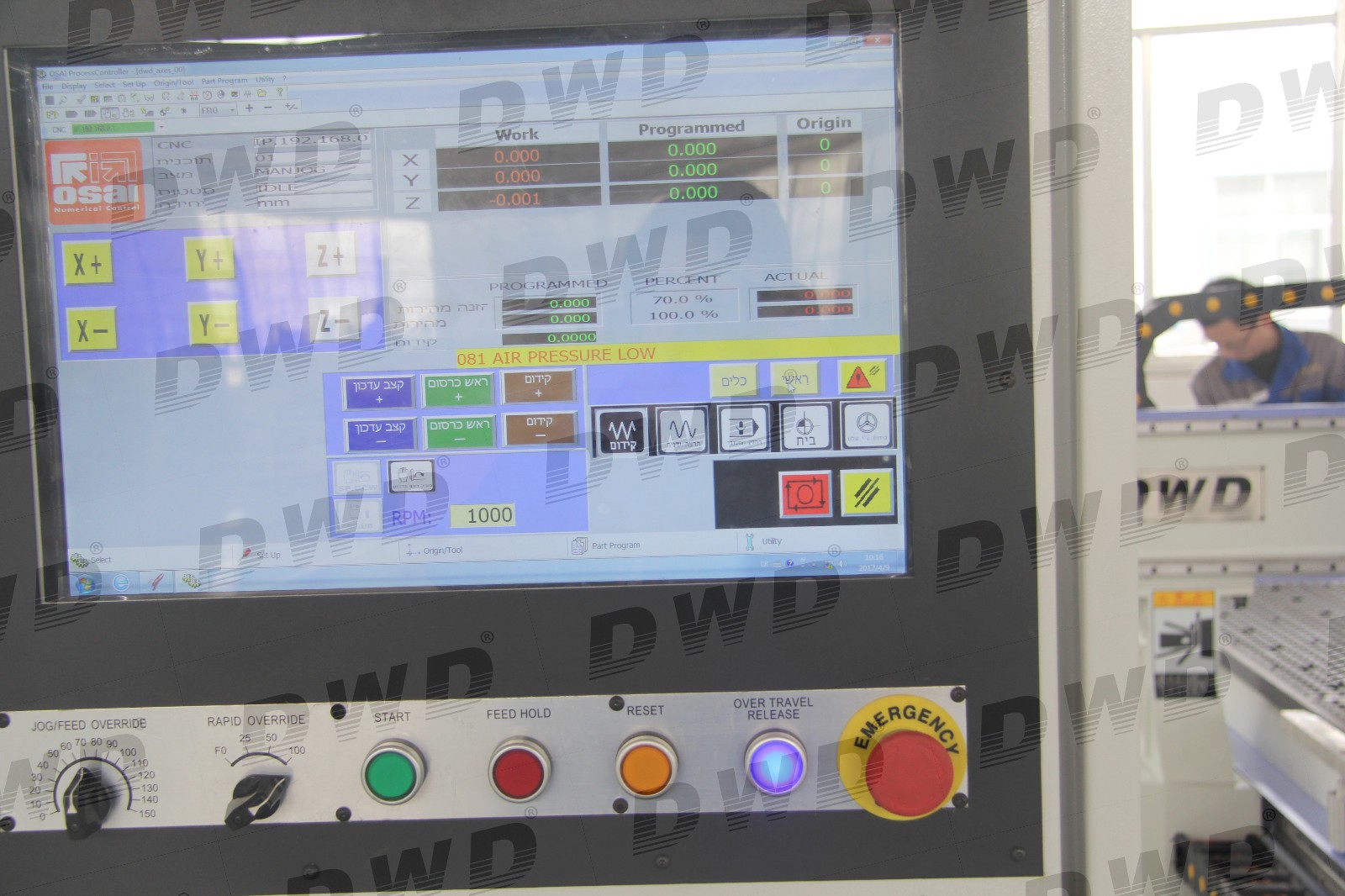

| Operating system | Osai |
| Max rapid | 45m/min |
| Max working speed | 25m/min |
| Transmission | Rack pinion and PMI linear rail for x y,ball screw for z |
| Table structure | double-layer vacuum table |
| Tool magazine | 8-position rotary tool magazine |
| Calibration system | auto tool sensor |
| Working voltage | AC220V/380V,50/60HZ,3PH |
| Software | Alphacam / artcam / router8 / ucancam / Vectric |
| Packing size | 3600*2260*2150mm |
| Gross wight | 1800KGS |
